HIP REPLACEMENT PRODUCTS

Our primary and revision hip implants are designed for optimal fit and function.

Kalyx’s versatile hip implant products provide multiple bearing options to suit the unique demands of each patient and are designed to offer you a wide variety of implants, instrumentation and muscle-sparing surgical approach options.

Cementless

Primary Systems for HIP

PLUS FIT® Femoral STEM

PLUS FIT Femoral stem.png

PLUS FIT® Acetabular CUP

PLUS FIT Acetabular cup.png

PLUS FIT® Metal Head

PLUS FIT Metal Head.png

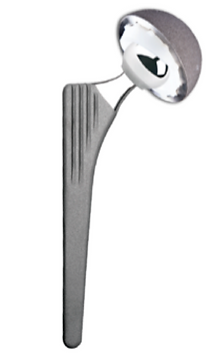

PLUS FIT CEMENTLESS HIP SYSTEM

PLUS fit Cementless Hip System is designed based on the proven design principles of time-tested implants. Thanks to many years of experience gained in recent developments in production technology, further enhancement has been made possible to this time tested designs.

PLUS FIT CEMENTLESS HIP SYSTEM.png
PLUS FIT CEMENTLESS HIP SYSTEM logo.png
Screen Shot 2020-12-24 at 12.02.17 AM.pn
Femoral Stem

Femoral Stem is of Titanium Alloy

  • Pre dimensional conical design and rectangular cross section ensures best rotational stability.

  • Special Taper design with proximal multiple fins ensures primary stability.

  • Wide metaphyseal section allows filling in the calcar region and the longitudinal rips penetrates the cancellous bone thereby increasing primary stability.

  • Highly polished flat neck minimises wear and increases range of motion.

  • Forged titanium alloy with corundum blasted roughened surface provides optimum osteointegration.

  • 12/14 Neck Taper allows coupling with numerous bearing surface

Screen Shot 2020-12-24 at 12.06.14 AM.pn
Metal Head

Metal Head is of forged cobalt chromium-molybdenum alloy

  • Each single head is severely controlled to ensure perfect and safe coupling on to the stem taper.

  • Grinding process guarantees perfect sphericity and roughness value.

  • Metal Head is of 12/14 Eurocone

  • Available in Ø 28 mm/36 mm in sizes S/M/L/XL

Screen Shot 2020-12-24 at 12.09.09 AM.pn
Acetabular Shell

Acetabular Shell is of Titanium Alloy

  • Press fit Shell for good primary stability.

  • Good secondary stability is achieved through rough surface coating of pure titanium of 500 to 700 microns which ensures good osteointegration.

  • Taper fit locking mechanism can accommodate polyethylene and ceramic liners.

  • Size ranges from 40 mm to 68 mm.

Screen Shot 2020-12-26 at 12.56.47 PM.pn
Acetabular Insert

Acetabular Insert is of UHMWPE

  • Locking mechanism allows liner to resist transverse and tipping forces and minimizes micromotion by providing a secure point of stabilization.

  • Acetabular Inserts available to pair with 28 mm/36 mm Ball Head.

Screen Shot 2020-12-26 at 12.58.01 PM.pn
Fixation Screws

Fixation Screws is of Titanium Alloy

  • Available in sizes from 20 mm to 30 mm in 2 mm increments.

Cemented

Primary Systems for HIP

COLLARLESS

PLUS FIT® Femoral STEM

C2 Polished Femoral stem.png

PLUS FIT® Acetabular CUP

C2 Acetabular cup.png

PLUS FIT® Metal Head

C2 Bi Polar Head.png
C2 CEMENTED TOTAL HIP SYSTEM.png
C2 CEMENTED TOTAL HIP SYSTEM.jpg

C2 CEMENTED TOTAL

HIP SYSTEM

The Collarless Tapered Cemented femoral hip system is designed for surgeons who are looking to utilise a single system for all hip indications, primary, fracture and revision, with a single proven system.

COLLARLESS

Collarless neck helps to achieve intra operative leg length adjustments.

  • 12/14 Taper (Euro cone)

  • 125° Neck Angle



​Polished Double Taper

  • Creates radial compressive loading as the predominant force, unlike a non-polished surface non tapered stem, which creates greater shear force as stem migrates distally

  • Capacity to move distally

  • Engage within the cement mantle

  • Minimize debris

  • Distal stem migration at the cement implant interface

  • More forgiving than conventional designs

C2 CEMENTED TOTAL HIP SYSTEM.png
C2 CEMENTED TOTAL HIP SYSTEM.jpg
C2 Cup.png
C2 Cup

---------

  • Eccentric & Low Profile Cup

  • Tangential Skirt Geometry

  • 165° head coverage

  • Circular groove to ensure axial fixation

  • Polar groves to provide a good rotation stability

  • Inner Ø 28 mm / Outer Ø 44 mm - Ø 58mm (2mm variations)

C2 Bipolar Head.png
C2 Bipolar Head

--------

  • Outer Shell in 1 mm increment

  • Insert Ring (UHMWPE) provides optimum protection against the risk of dislocation

  • 22 mm and 28 mm inner diameter

  • 22 mm : with outer shell diameter 39 - 42 mm in 1 mm increment

  • 28 mm : with outer shell diameter 43 - 60 mm in 1 mm increment

Head

Highly polished

  • 12/14 Taper (Euro cone)

  • Ø 28 mm Four different Sizes (S, M, L, XL)

  • Ø 22 mm (M, L)

C2 Plug (cement restrictor).png
C2 Plug (cement restrictor)

----------

  • Cylindrical plug with three rings or skirt seated on its base

  • The diameter of the plug corresponds to two thirds of its height

  • Small aperture in the distal part functions as an air vent

  • 5 different sizes (Ø8mm -Ø 16mm) in 2mm variation to have tighter fit

C2 Cement Dispenser.png
C2 Cement Dispenser

------------

  • Ready to use sterile pack

  • Available of Short and Long Nozzle

  • Calibrated barrel ensures optimal use of bone cement

  • Silicon pressurizer for femoral canal
